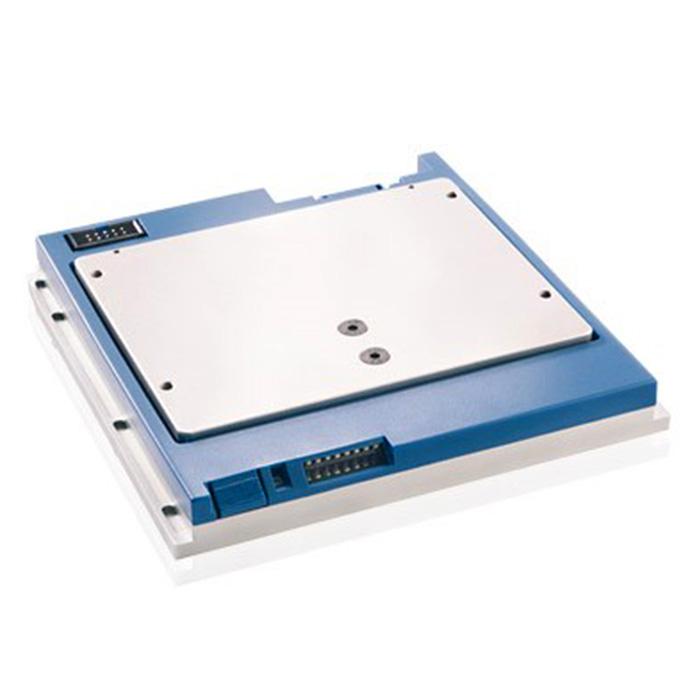

Electronic counting scale
HZW 100

Product description

The HZW is applied not only for continuous monitoring of the coins but also for the fast filling of the hopper without coin selector. The serial interface can be used for planning serive as the filling can be retrieved any time by the machine controller. The mini-hopper with ccTalk or MDB interface is connected via the coin counting scale to the machine. No additional plug-in connectors are necessary.


  • Quantity of hopper coins can be retrieved at any time
  • Minimum mounting height
  • Exact weighting of not centred loads

Product enquiry

  • add_circle_outline Specifications

    Technical Data

    • Max. weight 5 kgs (hopper plus coins)
    • Coin denominations: up to 16 different coins or tokens pre-programmable
    • Supply voltage: 8 to 24 volts DC
    • Interfaces: ccTalk or MDB

    For patent reasons the hopper scale HZW 100 cannot be offered in the USA.
