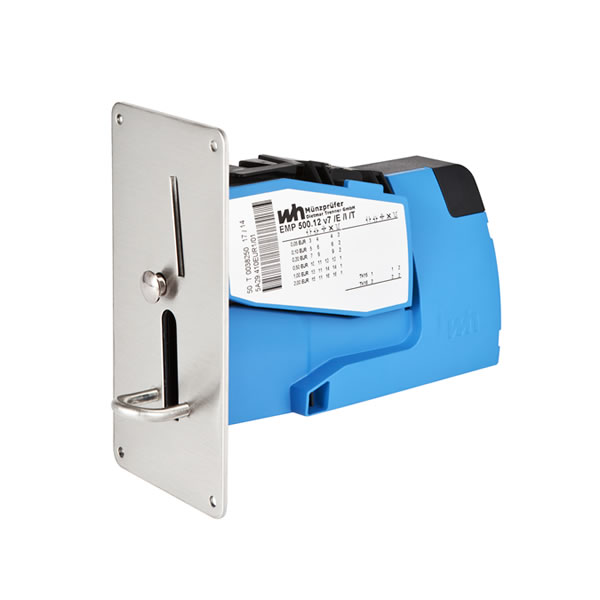

Electronic coin selector
EMP 500 v7

Product description

The electronic coin selector EMP 500 has been designed specially for coin-operated machines where mechanical coin selectors have been fitted traditionally. The EMP 500 v7 with its innovative design sets a new standard offering a reliable alternative to mechanical coin selectors. A full range of front plates ensures that no alteration of the front plate cut-out is required on the machine. The electrical switching outputs of the EMP 500 v7 are simply connected to the micro switch or optocoupler inputs of the existing controller. The coin selector has a supply voltage of 9 to 30 volts DC or 12 to 24 volts AC ensuring that only minimal technical amendments are required.

Highlights

  • Innovative measuring system for highest coin acceptance
  • Totalizer and timer versions
  • Datasets for more than 100 currencies

Product enquiry

  • add_circle_outline Properties

    Versions

    coin selector with parallel interface

    • EMP 500.00 v7 2 open collector outputs
    • EMP 500.01 v7 2 solid state relay outputs
    • EMP 500.04 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors closed in standby
    • EMP 500.12 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors open in standby

    coin selector with totalizer function
    (price can be set via DIP switches in 256 steps, 8 DIP switches for coin blocking)

    • EMP 500.1206 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors closed in standby
    • EMP 500.0106 v7 2 solid state relay outputs

    coin selector with timer function
    (time and price can be set via DIP switches in 16 steps, 8 DIP switches for coin blocking)

    • EMP 500.1207 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors closed in standby
    • EMP 500.0107 v7 2 solid state relay outputs

    coin selector with serial interface

    • EMP 500.13 v7 Multi Drop Bus protocol, ccTalk protocol and SCI interface
      (The hardware does not match the ccTalk or MDB specification.)
  • add_circle_outline Specifications

    coin acceptance: 32 coin channels, max. 16 different coins or tokens
    maximum coin size: diameter: 30.0 mm thickness: 3.3 mm
    standard temperature range: +10°C to +70°C
    supply voltage: 9 to 30 V DC or 12 to 24 V AC
    interface: 2 parallel output lines, multi-pulse operation or serial

    Options

    /E extended temperature and humidity range temperature: -20°C to +70°C, humidity classification, relative humidity: annual average = 80%, max. 30 days per year 100%, remaining days max. 90%
    /I inventory impulse
    /T teach mode (2 channels activated)

  • add_circle_outline Complementary products
